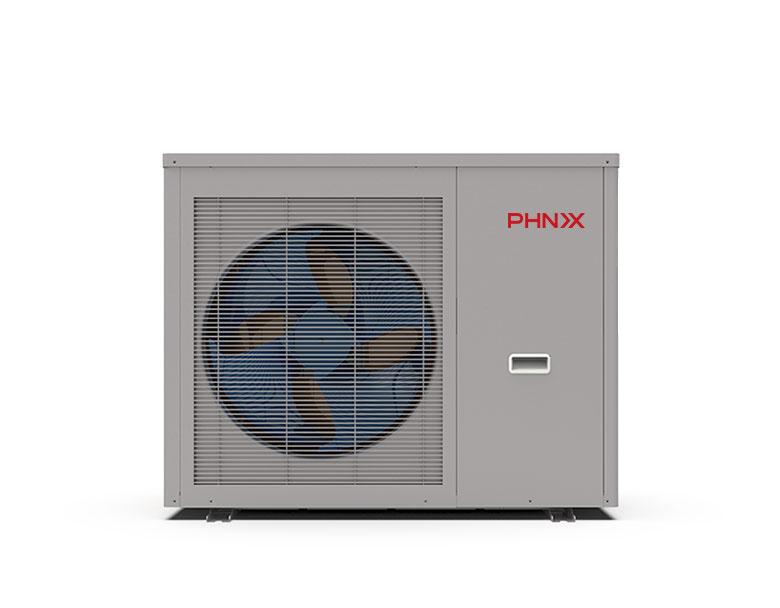

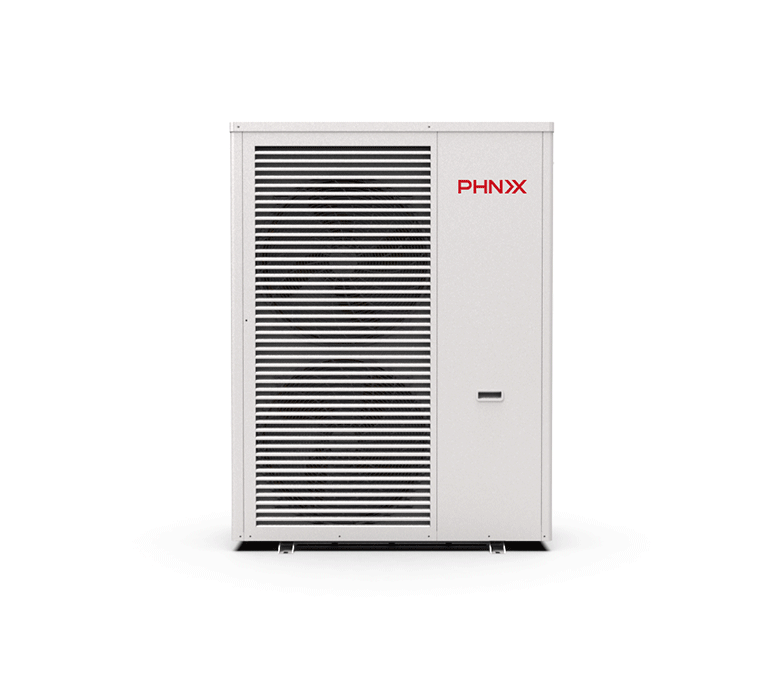

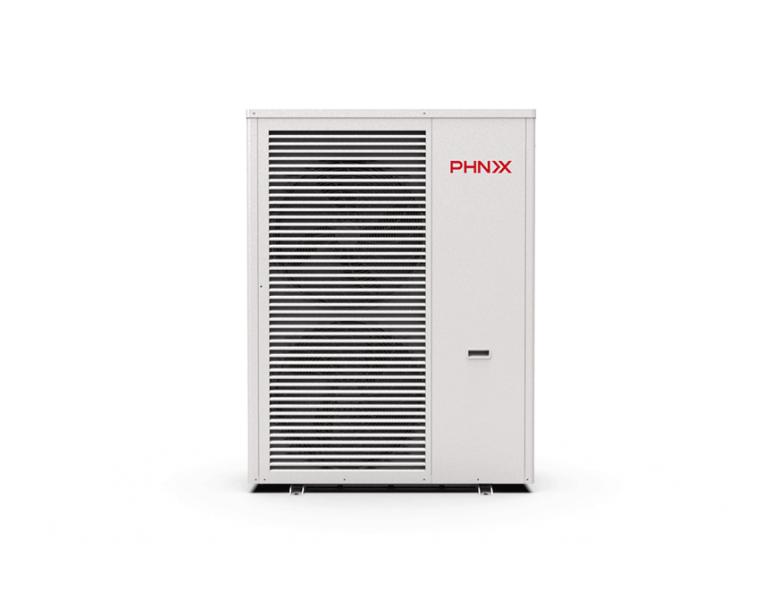

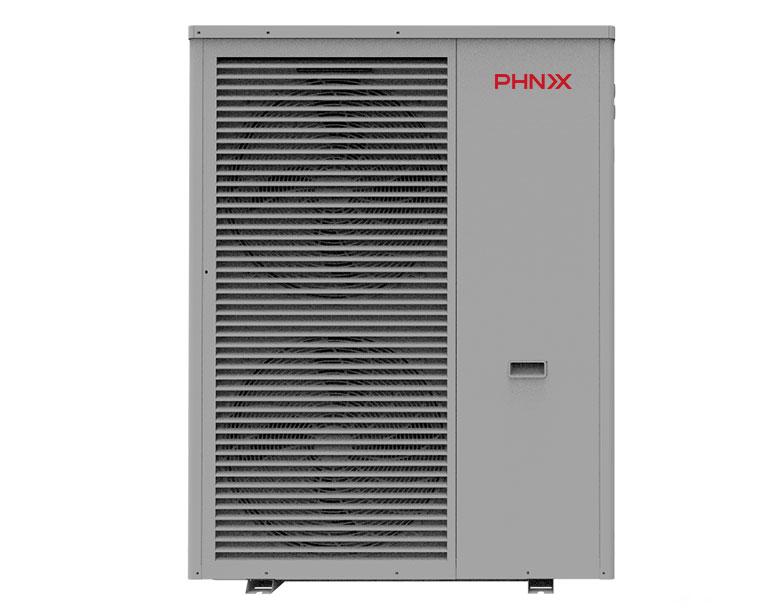

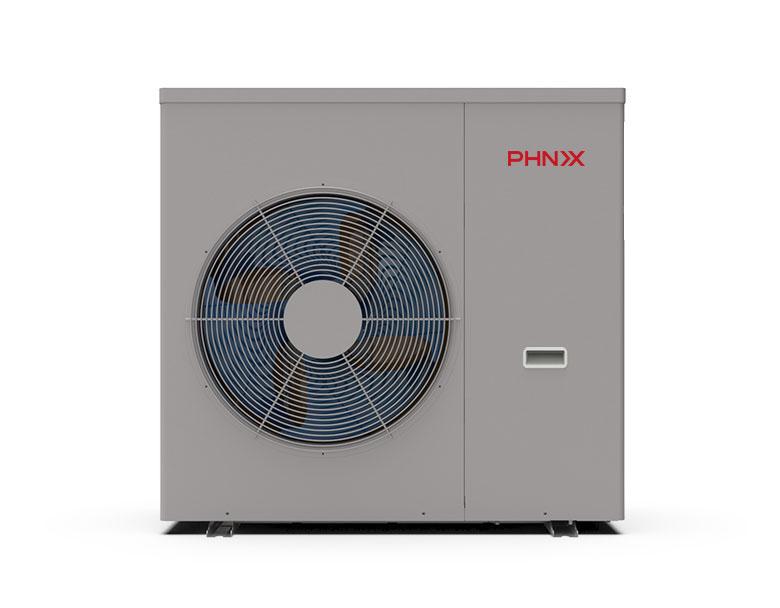

With PHNIX new technology of DC Inverter EVI, HeroPlus Series can be used in extremely cold area for heating/cooling, hot water.
Thanks to EVI technology, HeroPlus Series features a wide operating temp, range. It means they can reach high water temp.Even in cold climat, and can work safely and reliably at ambient temp, as low as -30〇C with Wet Injection technology.
Intelligent defrosting uses the pressure sliding defrosting technology to figure out the exact defrosting time and start pressure according to the real ambient temperature. It saves energy and makes the heat pump work in high efficiency.
PHNIX wire controller is with a 5-inch smart colorful touch display which is installed on the wall. Featured of 0.5°C precise control, water temperature curve display, easy timing, one-key mute and so on, it brings users easy and convenient experience.
Compared to the refrigerants widely used today, such as R-22 and R-410A, R32 has a global warming potential that is two-third lower and it is remarkable for its low environmental impact, which speed up the its popularity in the industry

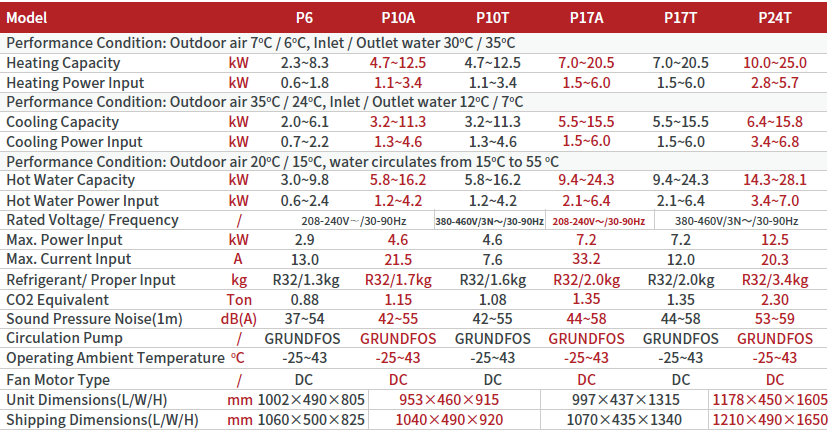

| Model | P6 | P10T | P17T | |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Capacity Range(kW) | 2.29~8.25 | 4.70~12.5 | 6.0~20.0 |
| 7/6°C, Water Temp. (In/Out): 30/35°C | Heating Power Input Range(kW) | 0.63~1.81 | 1.08~3.44 | 1.5~5.0 |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Capacity Range(kW) | 1.58~7.39 | 3.58~12.1 | 5.5~18.0 |
| 7/6°C, Water Temp. (In/Out): 50/55°C | Heating Power Input Range(kW) | 1.04~2.76 | 1.82~4.13 | 2.0~7.5 |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Capacity Range(kW) | 1.64~7.04 | 3.41~8.32 | 5.5~17.0 |
| 2/1°C, Water Temp. (In/Out): 30/35°C | Heating Power Input Range(kW) | 0.69~1.87 | 1.07~2.95 | 1.5~5.0 |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Power Input Range(kW) | 1.15~6.72 | 2.84~8.04 | 5.5~15.0 |
| 2/1°C, Water Temp. (In/Out): 50/55°C | Heating Capacity Range(kW) | 0.97~2.73 | 1.62~4.31 | 2.2~7.4 |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Capacity Range(kW) | 2.20~5.62 | 2.28~8.64 | 4.6~14.5 |
| -7/-8°C, Water Temp. (In/Out): 30/35°C | Heating Power Input Range(kW) | 0.91~1.87 | 1.06~3.04 | 1.5~5.0 |
| Heating Condition - Ambient Temp. (DB/WB): | Heating Capacity Range(kW) | 1.39~5.54 | 2.24~8.32 | 4.5~14.0 |
| -7/-8°C, Water Temp. (In/Out): 50/55°C | Heating Power Input Range(kW) | 1.26~2.60 | 1.74~4.25 | 2.2~7.3 |
| Cooling Condition - Ambient Temp. (DB/WB): | Cooling Capacity Range(kW) | 1.98～6.1 | 3.22~11.30 | 4.2~14.0 |
| 35/24°C, Water Temp. (In/Out): 12/7°C | Cooling Power Input Range(kW) | 0.7~2.22 | 1.27~3.44 | 1.8~7..5 |
| Frequency | Hz | 30~90 | 30~90 | 30~90 |
| ErP Level (35°C) | / | A+++ | A++ | A++ |
| ErP Level (55°C) | / | A++ | A++ | A++ |
| Power Supply | / | 230V~/30-90Hz | 380V/3N~/30-90Hz | |
| Max. Running Current | A | 13 | 7.5 | 13.5 |
| Refrigerant Type | / | R32 | ||
| Refrigerant Volume | g | 1300 | 1600 | 1800 |
| Compressor Brand | / | Panasonic | ||
| Water Pump Brand | / | GRUNDFOS | ||
| Water Connection | Inch | 1.0 | 1.0 | 1.2 |
| Water Flow | m3/h | 1.0 | 1.7 | 2.15 |
| Water Pressure Drop | kPa | 32 | 22 | 45 |
| Water Pump Head | m | 5.5 | 5.5 | 4.0 |
| DC Fan Motor Quantity | / | 1 | 1 | 2 |
| DC Fan Power Input (max) | W | 75 | 70 | 130 |
| DC Fan Power Input (min) | W | 27 | 27 | 45 |
| DC Fan Speed (max) | RPM | 850 | ||
| DC Fan Speed (min) | RPM | 300 | ||
| Noise | dB(A) | 37~54 | 42~55 | 44~58 |
| Net Weight | kg | 90 | 100 | 155 |
| Gross Weight | kg | 102 | 123 | 175 |
| Net Dimension (L/W/H) | mm | 1052×490×805 | 1000×470×915 | 1000×395×1315 |
| Shipping Dimension (L/W/H) | mm | 1060×500×825 | 1040×490×920 | 1080×445×1480 |
| Operation Ambient Temp. | °C | -25~43 | ||
| Max. Outlet Water Temp. | °C | 60 | ||
