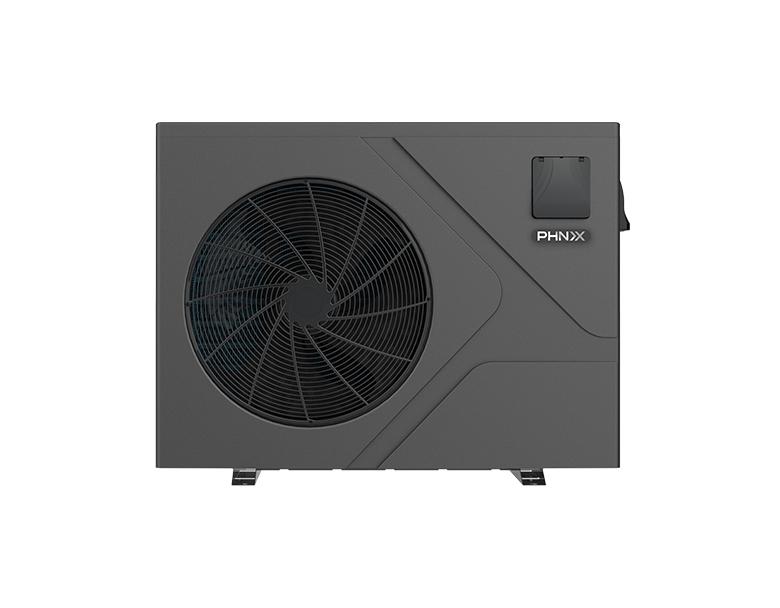

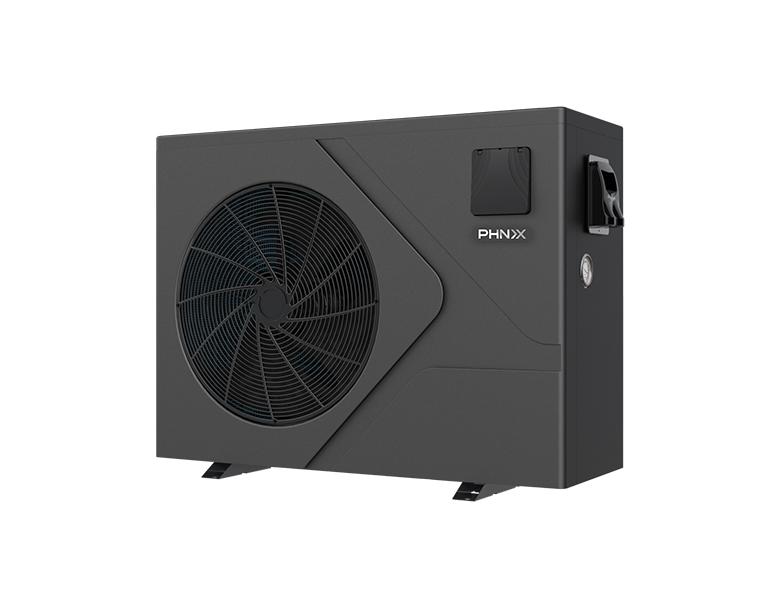

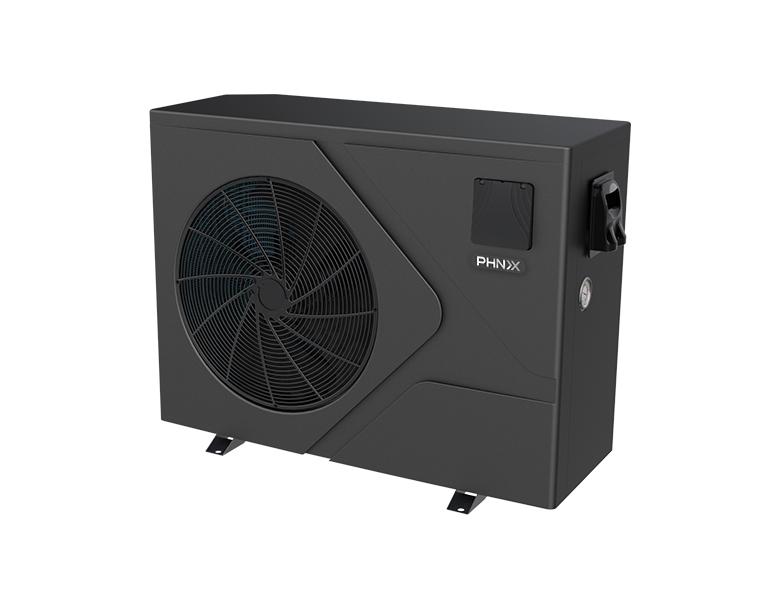

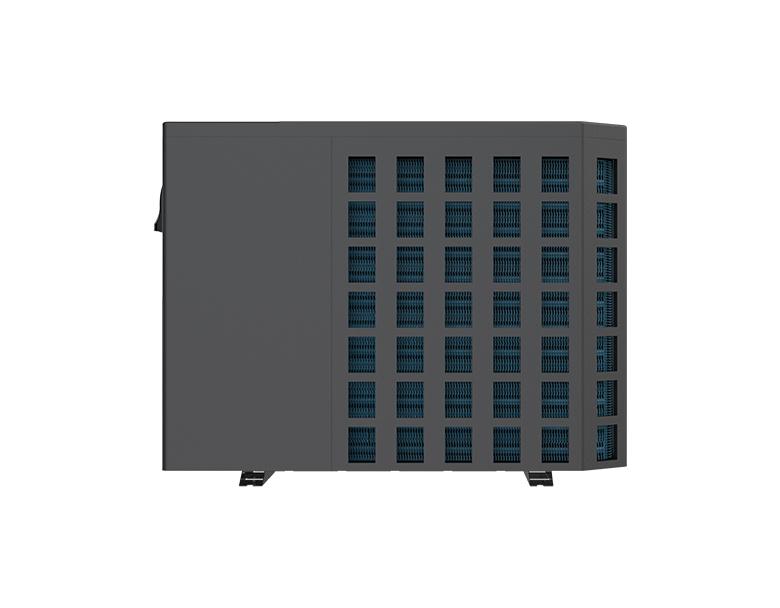

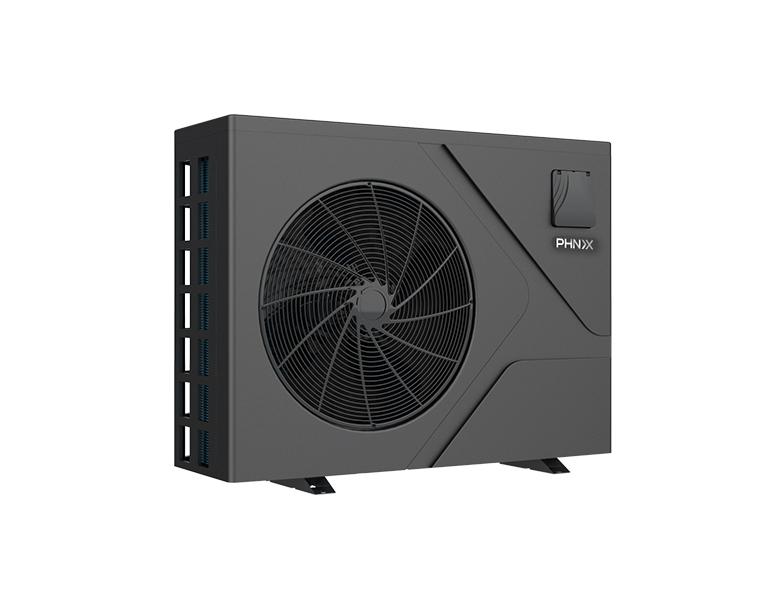

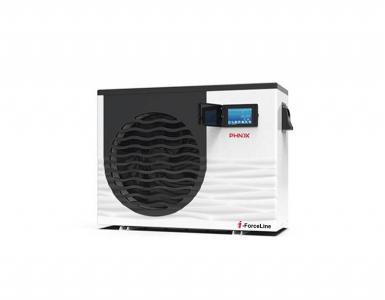

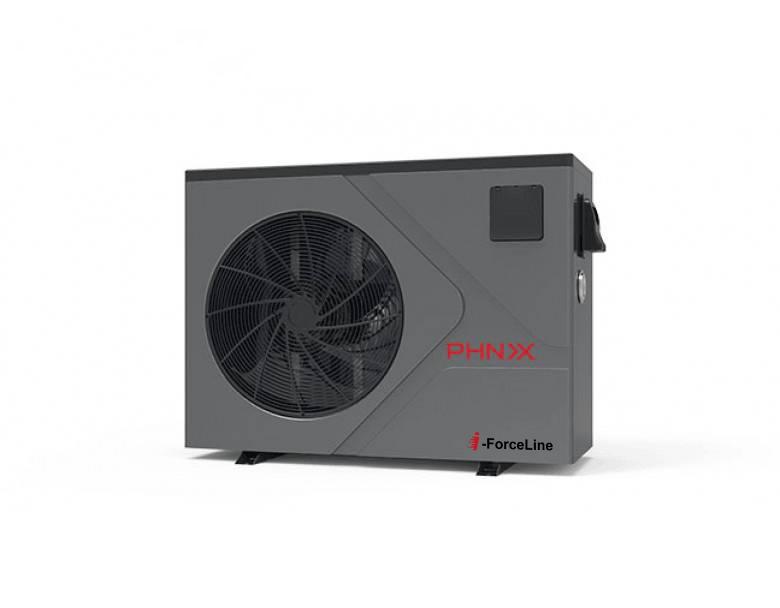

PHNIX i-ForceLine Pro Swimming Pool Inverter Heat Pump with silence character makes you calm down and relax when enjoy the comfortable swimming.
In order to facilitate the management and maintenance of the machine, PHNIX's latest intelligent remote control technology, 4G-DTU, is available for this unit. Data transferring strarts once it power on.
stands for the newest optimized technology specific to PHNIX swimming pool heat pump products.
Powered by , the heat pump runs at PHNIX unique inverter technology, maintaining the max stability and greatly reducing the energy consumption during running.
Moreover, heat pump with technology can create an extraordinary quiet swimming environment for users for super low noise it will produce.

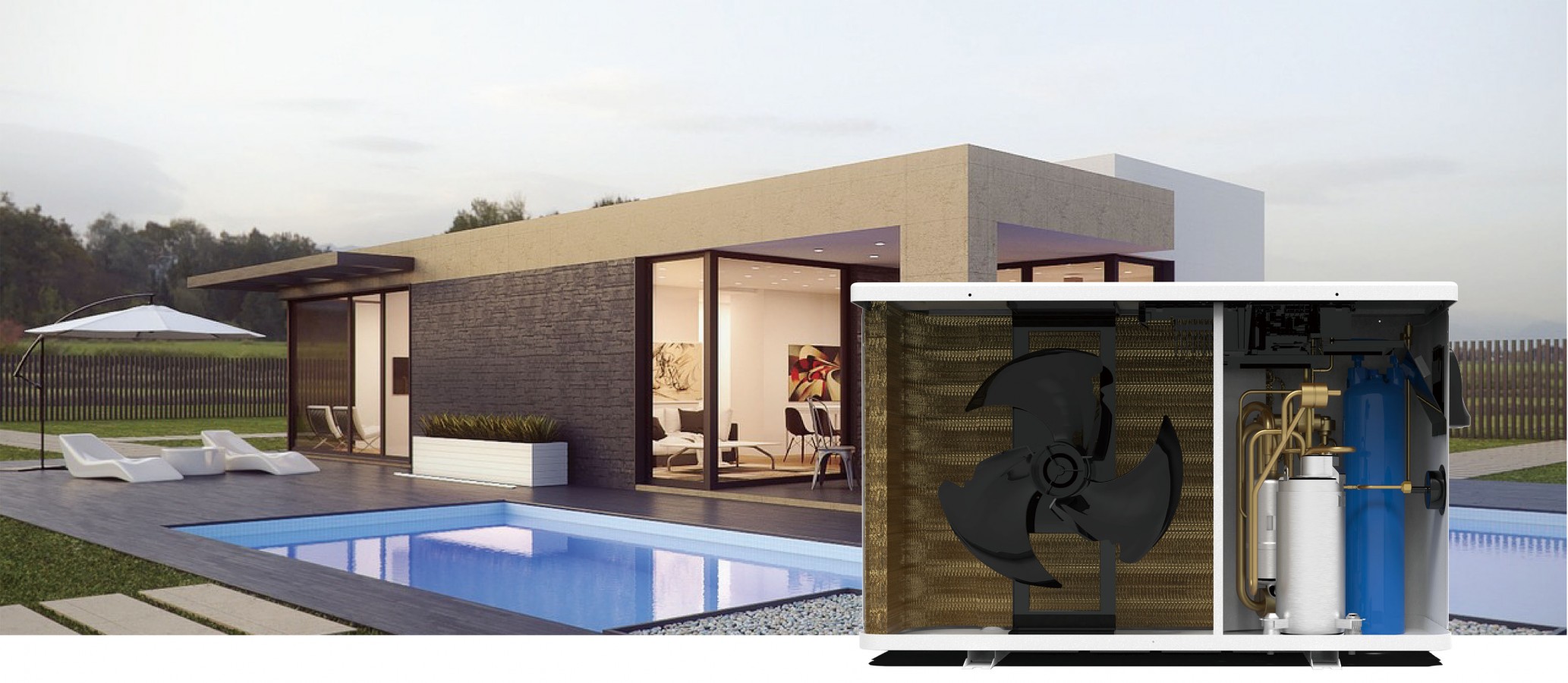

Also, heat pump powered by uses the most leading designs both on internal structure and appearance, enabling the unit to run with high efficiency, installed flexibly and perfectly blending with your swimming environment at the same time.
With new noise reduction inner design, the sound level of the unit at 1 meter is as low as 39 dB(A) under silence mode.
With a leading and mature full inverter technology, the unit can reach a high COP of 12.5.
The i-ForceLine Pro heat pump system adopts Mitsubishi compressor with much better efficiency and lower running noise.
Adopting updated fan blade, with better dynamic balance and reducing turbulent flow noise, the heat pump work efficieny is greatly improved.
The unit uses the new Ruking-Emerson driver board with integrated and compact design. This board is installed upside-down in the heat pump, which effectively helps to solve probelms such as water ponding and dust accumulation. Only one screw needs to be taken down for maintenance.
i-ForceLine Pro

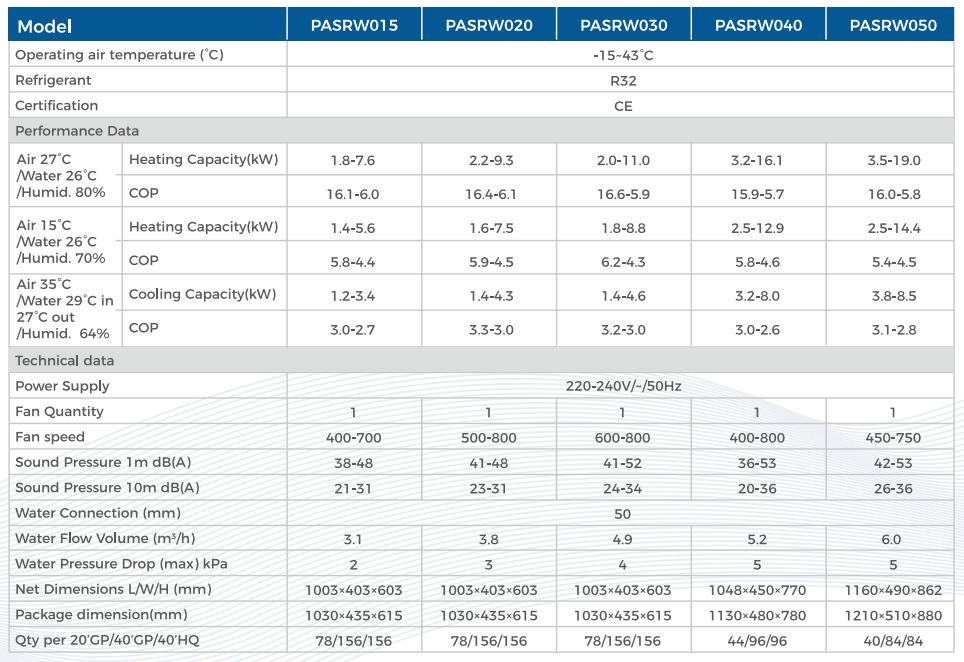

i-ForceLine Pro | PASRW015 | PASRW020 | PASRW030 | PASRW040 | PASRW050 | ||
Performance Condition(Air 27℃/Water 26℃/Humid. 80%) | |||||||
Heating Capacity | kW | 1.82~7.24 | 2.23~ 9.00 | 1.97~11.66 | 3.25~16.00 | 3.50~18.70 | |
Heating Capacity | Btu | 6210-24700 | 7610-30710 | 6698-39644 | 11050-54400 | 11900-63580 | |
Consumed power | kW | 0.15-1.28 | 0.18-1.54 | 0.16-2.00 | 0.30-2.91 | 0.32-3.65 | |
COP | / | 12.13-5.66 | 12.39-5.84 | 12.57-5.84 | 10.83-5.50 | 10.94-5.12 | |
Performance Condition(Air 15℃/Water 26℃/Humid. 70%) | |||||||
Heating Capacity | kW | 1.39-5.64 | 1.58-7.00 | 1.79-8.62 | 2.55-12.60 | 2.55-14.00 | |
Heating Capacity | Btu | 4740-19240 | 5390-23880 | 6086-29308 | 8670-42840 | 8670-47600 | |
Consumed power | kW | 0.24-1.28 | 0.27-1.47 | 0.29-1.91 | 0.44-2.80 | 0.47-3.24 | |
COP | / | 5.79-4.41 | 5.85-4.76 | 6.17-4.52 | 5.80-4.50 | 5.43-4.32 | |
Power Supply | / | 220-240V~/1Ph | |||||
Fan Quantity | / | 1 | 1 | 1 | 1 | 1 | |
Fan Speed | RPM | 700 | 800 | 800 | 750 | 750 | |
Sound Pressure 1m dB | A | 38-50 | 39-51 | 42-53 | 43-54 | 43-55 | |
Sound Pressure in silence mode 1m dB | 39 | 41 | 43 | 44 | 44 | ||
Water Connection | mm | 50 | |||||
Water Flow Volume | m3/h | 2.4 | 3.0 | 3.7 | 5.2 | 6.0 | |
Water Pressure Drop | (max) kPa | 2 | 3 | 4 | 5 | 5 | |
Carton size | mm | 1030*435*615 | 1030*435*615 | 1030*435*615 | 1130*480*780 | 1210*510*880 |
