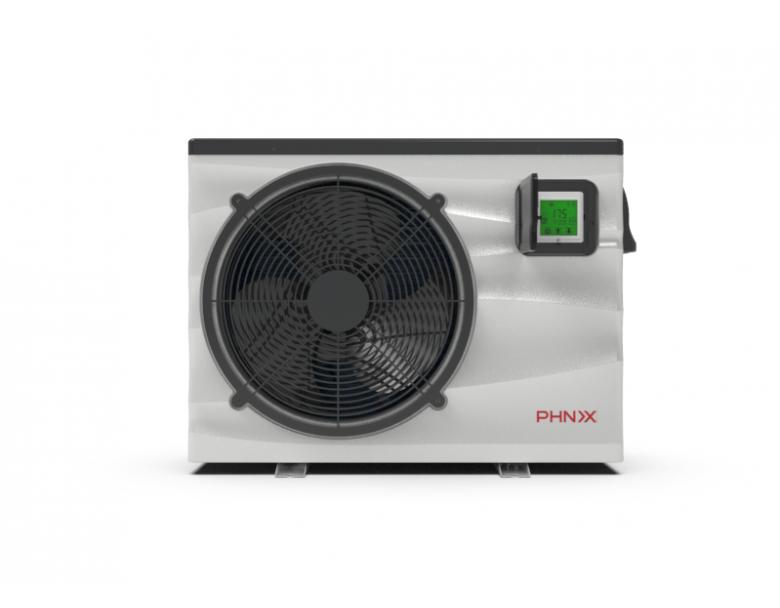

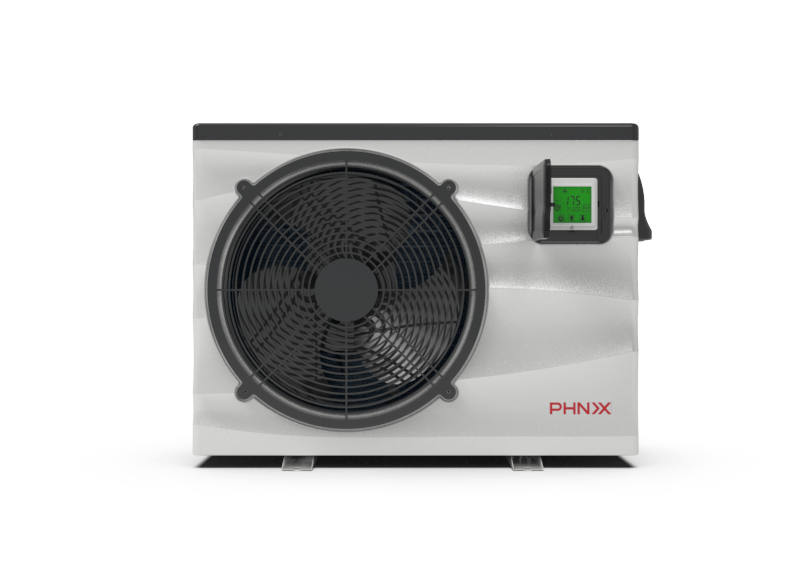

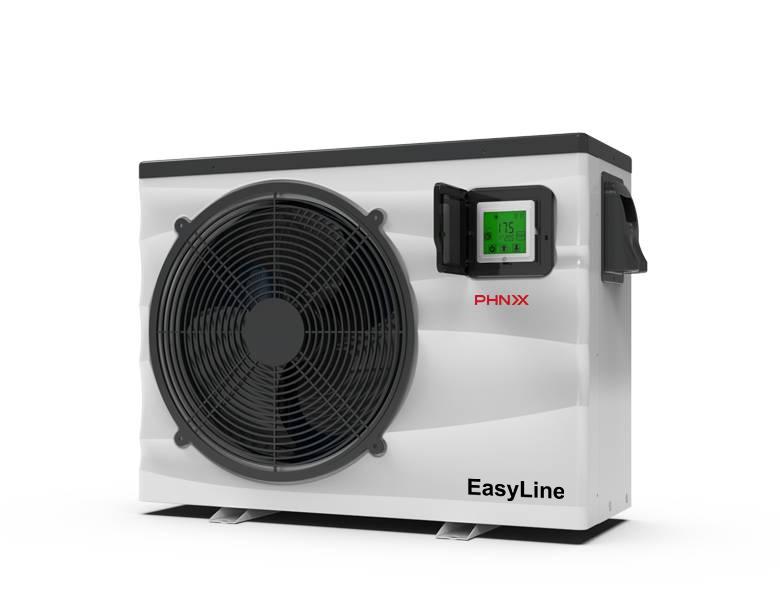

PHNIX EasyLine M Swimming Pool High-effcient Heat Pump is a high cost-effectiveness choice for pool heating.
Compared to the refrigerants widely used today, such as R-22 and R-410A, R32 has a global warming potential that is two-third lower and it is remarkable for its low environmental impact, which speed up the its popularity in the industry.
At performance condition of Air 27℃/Water 26℃/Humid. 80%, the COP of EasyLine M reaches as high as 5.98, which realizes great energy saving effect for customers.

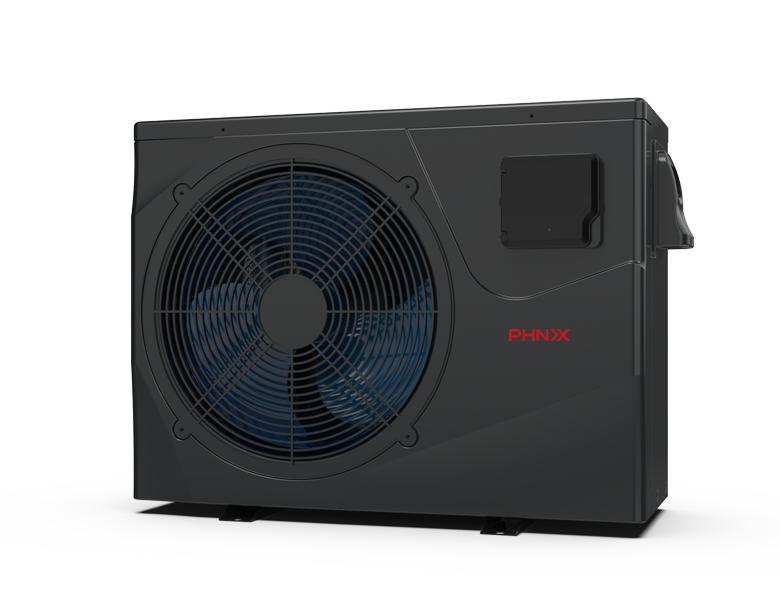

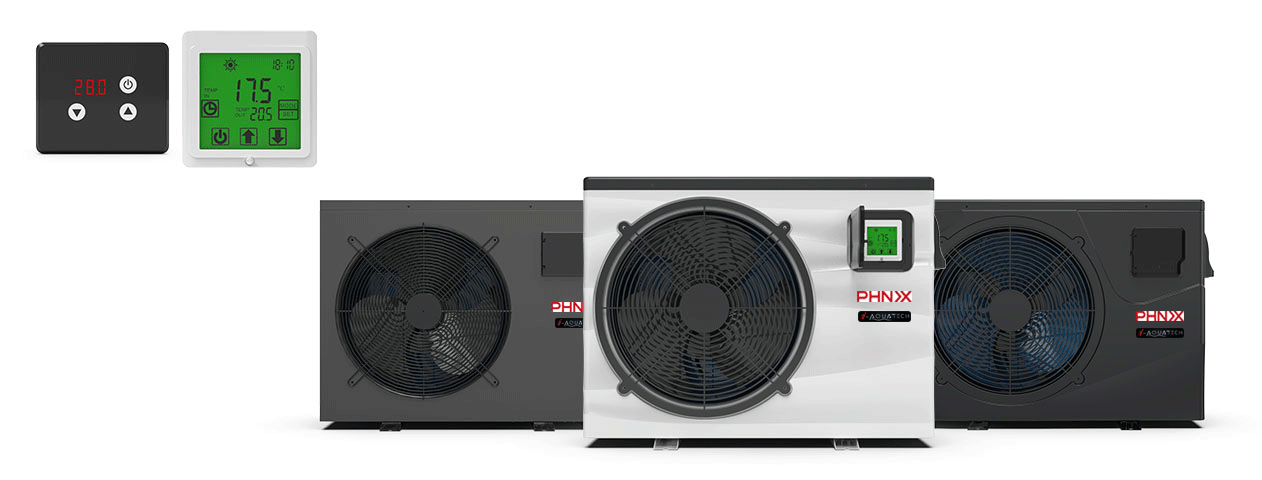

In order to choose your most preferable appearance of the products, we provide customized appearances service . Meanwhile, 2 smart displays are available for option.
| EasyLine M | PASRW010-P-AH | PASRW015-P-AH | PASRW020-P-AH | PASRW030-P-AH | PASRW035-P-AH | PASRW040-P-AH | |
| Advised Pool Volume | m3 | 17 | 25 | 35 | 45 | 58 | 70 |
| Operating Air Temperature | ℃ | -7~43℃ | |||||
| Performance Condition（Air 27℃/Water 26℃/Humid. 80%） | |||||||
| Heating Capacity | kW | 3.5 | 5.3 | 8.42 | 11.5 | 13.5 | 14.6 |
| Heating Capacity | Btu | 11900 | 18020 | 28628 | 39100 | 45900 | 49640 |
| Consumed Power | kW | 0.65 | 0.94 | 1.45 | 2.05 | 2.38 | 2.44 |
| COP | / | 5.38 | 5.64 | 5.81 | 5.61 | 5.67 | 5.98 |
| Heating Capacity（Air 24℃/Water 26℃/Humid.62 %） | |||||||
| Heating Capacity | kW | 3.1 | 4.6 | 7.4 | 9.95 | 12.2 | 13.1 |
| Heating Capacity | Btu | 10540 | 15640 | 25160 | 33830 | 41480 | 44540 |
| Consumed Power | kW | 0.64 | 0.90 | 1.40 | 2.02 | 2.31 | 2.38 |
| COP | / | 4.84 | 5.11 | 5.29 | 4.93 | 5.28 | 5.50 |
| Heating Capacity（Air 15℃/Water 26℃/Humid. 70%) | |||||||
| Heating Capacity | kW | 2.6 | 3.7 | 6.03 | 7.9 | 9.1 | 10 |
| Heating Capacity | Btu | 8840 | 12580 | 20520 | 26758 | 30940 | 34000 |
| Consumed Power | kW | 0.63 | 0.87 | 1.34 | 1.97 | 2.12 | 2.25 |
| COP | / | 4.13 | 4.25 | 4.50 | 3.99 | 4.29 | 4.44 |
| Power Supply | / | 230V～/50Hz | |||||
| Fan Quantity | / | 1 | 1 | 1 | 1 | 1 | |
| Fan Speed | RPM | 870 | 870 | 840 | 840 | 840 | 830 |
| Refrigerant Type | / | R32 | |||||
| Sound Pressure1m | dB(A) | 49 | 51 | 53 | 54 | 55 | 56 |
| Water Connection | mm | 50 | |||||
| Water Flow Volume | m3/h | 1.5 | 2.2 | 3.0 | 4.5 | 5.3 | 6.0 |
| Water Pressure Drop (max) | kPa | 2 | 2.5 | 2.5 | 8.7 | 2.8 | 3 |
| Net Dimensions L/W/H | mm | 800*340*575 | 996*403*600 | 1155*470*868 | |||
